Individualized & tailor-made
Modular systems from ALMAWATECH
Our comprehensive range of processes and technologies is available in the form of modular systems in individualized technical room containers. Thanks to our highly qualified team, we are extremely flexible in terms of system design. Contact us and we will plan and implement your individual system in one of our ALMA modules.
ALMA module
Our insulated and customizable technical room container allows us to integrate the entire water treatment system into it. The systems are delivered fully assembled, which allows for easy installation on site.
Insulation and WHG floor pan made of PU cast coating
Hydraulic capacity: 5 - 2,000 m³/d (depending on process type)
Generally no building permit required
ALMA CHEM MCW Modular
Chemical-physical precipitation system, modularly constructed in special technical room containers. Also suitable for installation in geologically remote areas and under extreme climatic conditions.
Modular precipitation and flocculation plant in container design with sludge treatment
High degree of individualization possible, e.g. supplementation with reverse osmosis or two-stage, sulphide precipitation
Hydraulic output between 10 and 500 m³/h
ALMA Neutra

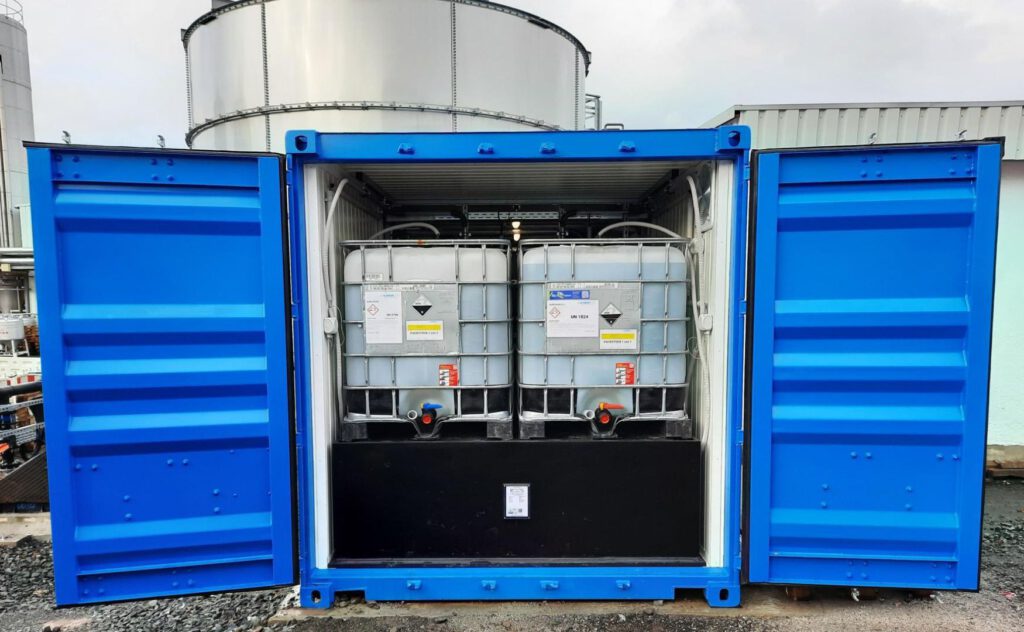

Automatic one- or two-sided neutralization system installed in the compact ALMA module.
Automatic process control using ALMA Vision software
Hydraulic output: 1 - 35 m³/h
Incl. dosing and preparation stations for the neutralizing agents
ALMA BIO Compact MBBR
Compact membrane bioreactor installed in the ALMA module. If required, the process can be supplemented with denitrification and nitrification or phosphate precipitation.
The process can be expanded cost-effectively through integration in the ALMA module
Hydraulic capacity: 10 - 100 m³/d
COD reduction of 10 - 120 kg/d at 90 % degradation rate
Reference photos of modular systems
